Customer Project: Jim's UL 20* Down Top Quilt

by Jim Ferrier

This was my First TQ project and I need to Thank Dubber on Youtube for a great step by step video
https://www.youtube.com/watch?v=WGaHsvtfbFg&index=47&list=PLm0BE3U5kMOpdn6m38UlAuAC1V8-Ue0-G

Customer Project: Jim's UL 20* Down Top Quilt
Customer Project: Jim's UL 20* Down Top Quilt
Customer Project: Jim's UL 20* Down Top Quilt
Customer Project: Jim's UL 20* Down Top Quilt
Customer Project: Jim's UL 20* Down Top Quilt
Customer Project: Jim's UL 20* Down Top Quilt
Customer Project: Jim's UL 20* Down Top Quilt
Customer Project: Jim's UL 20* Down Top Quilt

Materials

0.66 Membrane 10 Taffeta
950 fp down
.67 Noseeum baffle 2"
Related Products:

How do I make it?

  | Down Requirements
 | Length  | 78
 | Width  | 59
 | Loft  | 2
 | Total Cubic Inches  | 9,204
 | Down fp  | 950
 | OZ needed  | 9.688421053
 | Overstuff %  | 30.0%
 | Total OZ of Down needed to order  | 12.59

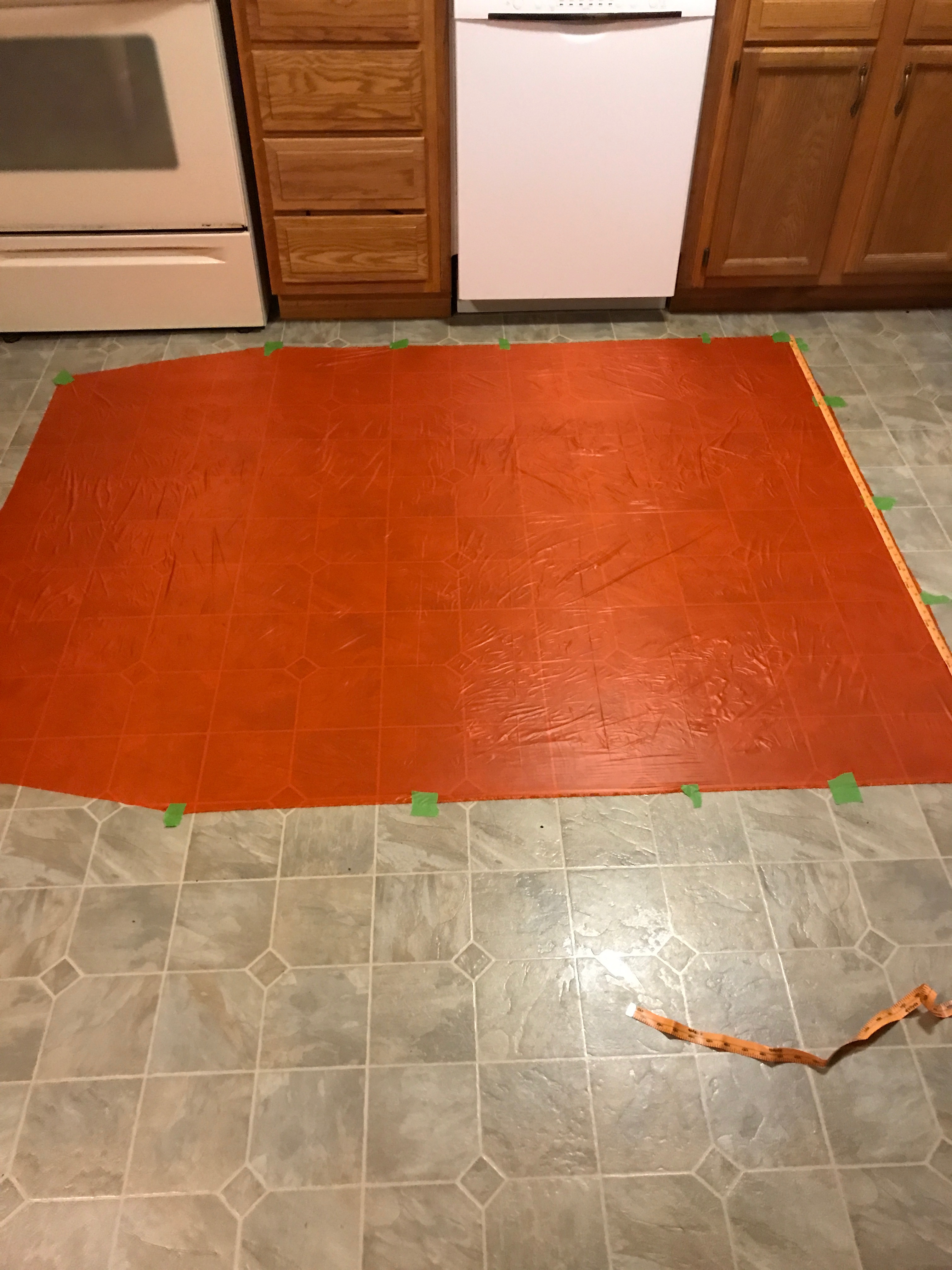

 | 1) lay out material and cut to length , and cut in tapers.
 | Use tape and heavy weights to hold down and prevent fabric from moving
 |

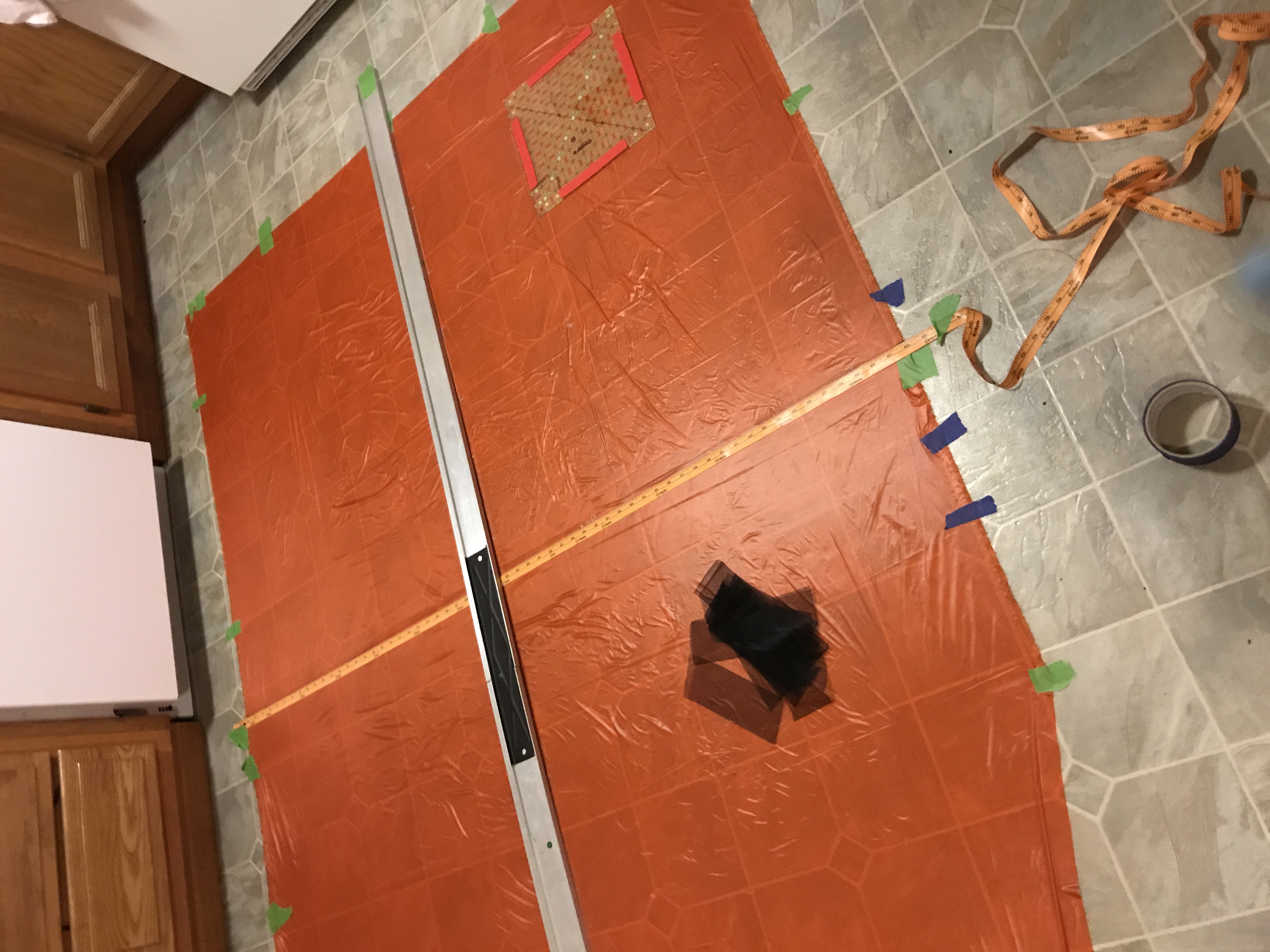

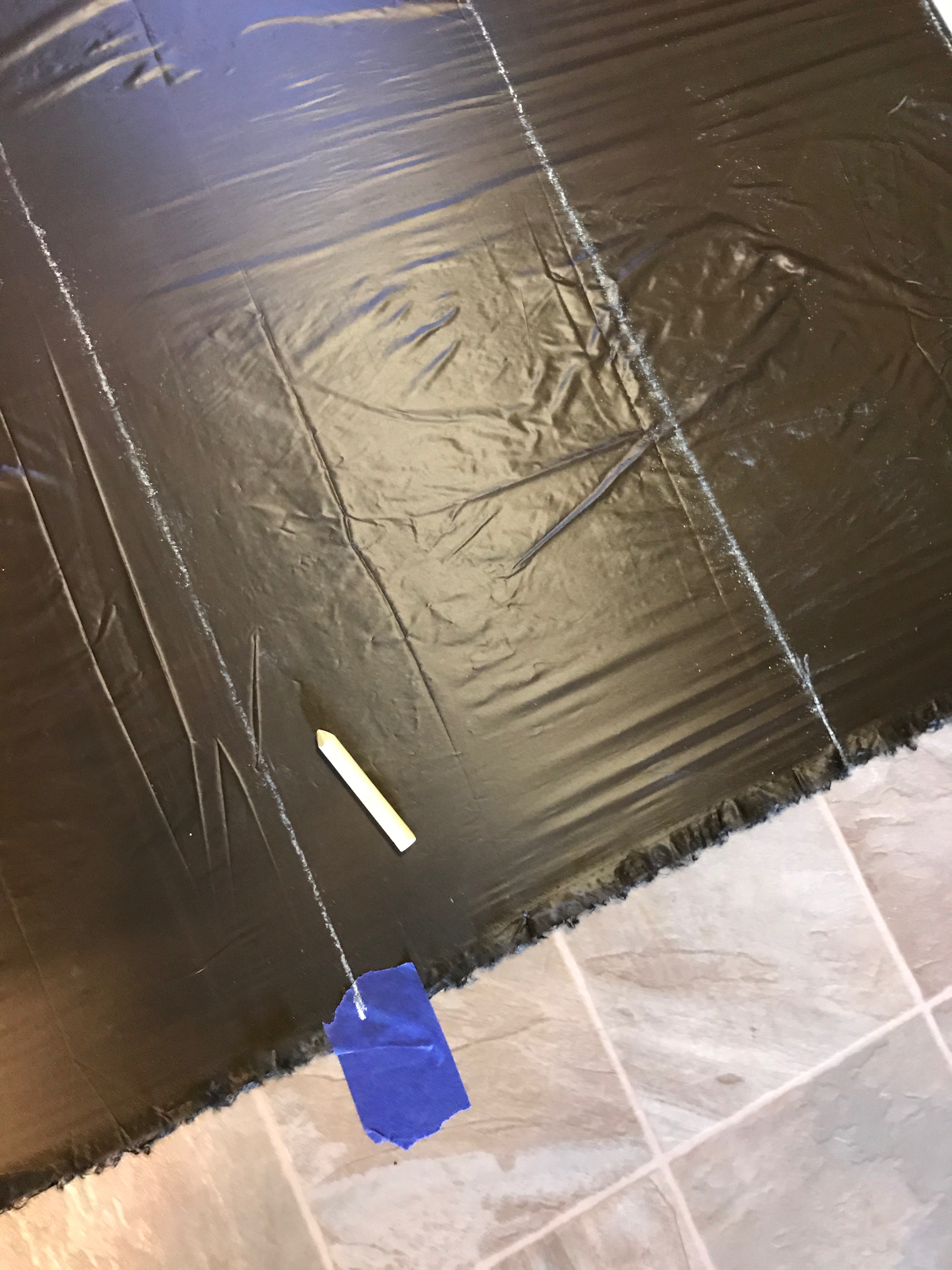

 | 2) Lay out Karo step baffles , find middle length and width
 | divide length by 4 and width by 5 rough estimate .
 |
 | 3) do both outer and inner shell the same dimensions and karo step
 |
 | 4) fold over a 1/2 inch and stitch the outer hem
 |
 | 5) attach garment loops to inside (shine Side)of shell line up with baffle line
 | attach foot box loop  to outside of fabric (dull Side)  and fold back, this will prevent feeling it while sleeping
 |
 | 6) install eyelets for draw string shock cord (reinforce for strength)
 |
 | 7) tape baffles in place on one of the shells , sew in place
 | attach to inside shell check often to correct any mistakes quickly
 | double stich all connection seams
 | 8) sew in triangle reinforcement for sewn foot box cut , fold and sew
 | install it where taper starts between the two shells with triangle pointing down on one  side
 |
 | 9) sew two shell together at the top , remember to sew in channel for shock cord
 | double stich all sides , but leave a hole for the down
 |
 | 10) triangle side and the bottom sew together
 | after you should have 3 sides sewn together top, side and bottom
 |
 | 11) turn  bag inside out and sew the foot box.  Place triangle side between the two shells and sew
 | together . After stitching together fold over and flat stich it to make a smooth seam
 |

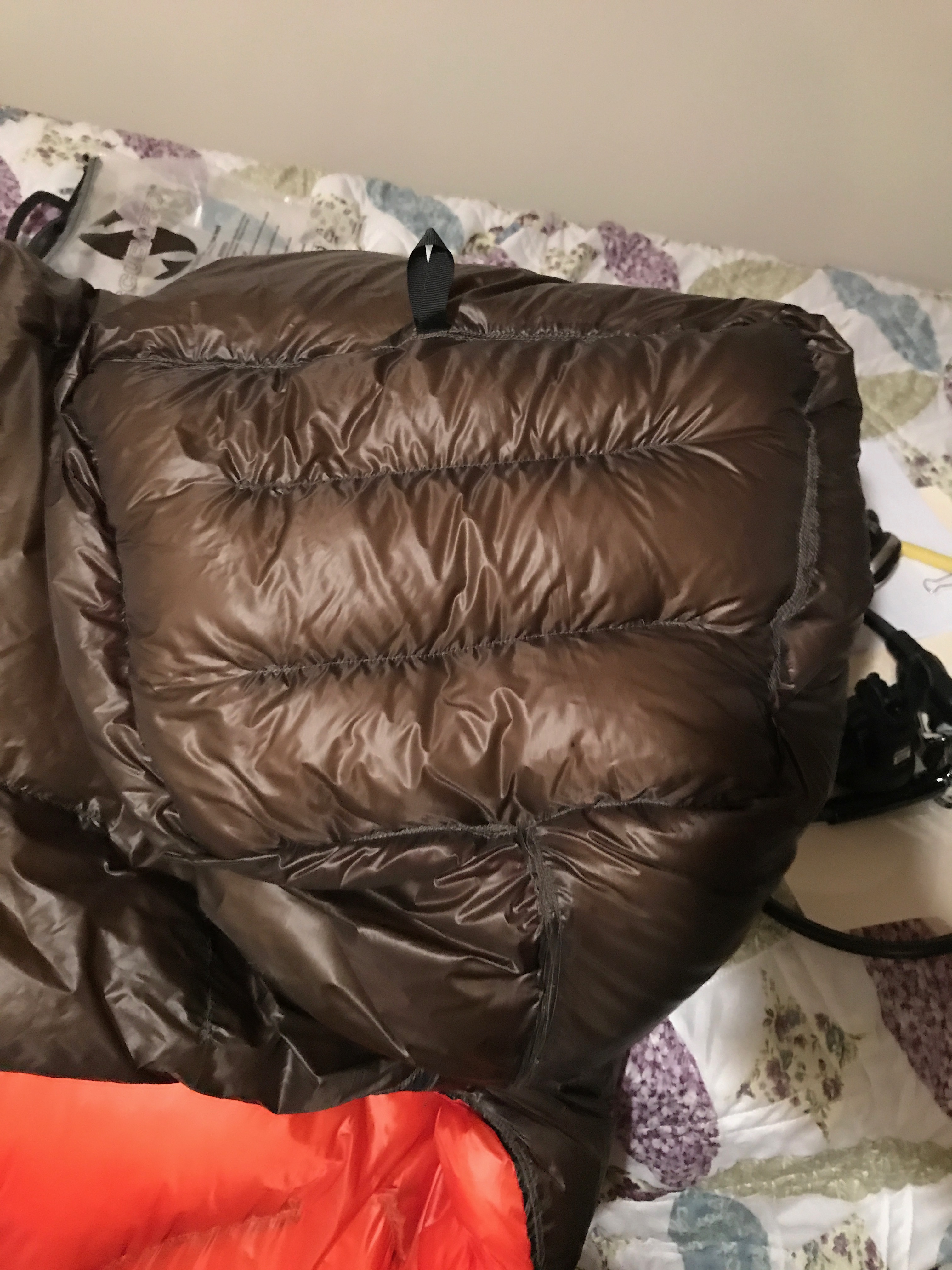

 | FOOT BOX
 | 12) measure the opening on the end
 | 13) cut it , hem it and add baffles and stich it , re-measure before stuffing
 |
 | 14) with shell turned inside out sew box on to the two shells
 |
 | 15) compress down and fill bag - I modified a wet/dry vac to suck the down from the bags and blow it into the TQ
 |
 | 16) sew close opening
 |
 | shake the bag or put in dryer with tennis balls to spread down
 |
