Customer Project: Climashield Sleeping Bag

by Jared

• OVERVIEW
• HOW DO I MAKE IT
• MATERIALS

• I made this sleeping bag to replace a heavier and cheap bag. It uses 5 oz/sq yd climashield apex synthetic insulation. Total weight is 3lb 4 oz including stuff sack and small pillow.

  What I would do different:
  Use a lighter shell materiel, such as Membrane 10 Nylon at .66oz/sq yd.
  Use more insulation. This bag is only comfortable down to about 30-40F. I've been in it in the low 20s and even with everything I brought on, I was still too cold to sleep.
  Use lighter insulation. Down or Primaloft One would reduce the weight of the bag even further. Primaloft One is about 10% warmer for the weight than Climashield Apex.
  I used a layer of mylar spray glued onto the inner shell layer to experiment with radiant heat reflectors. It was hole punched for breath-ability. I'm not convinced the mylar made a big difference. The weight and cost of mylar + glue would have been better allocated to more insulation.
• 1: Lay out two pieces of lightweight shell materiel, one on top of the other. Each piece should be about 60"x80". I used 1.4 oz/sq yd ripstop nylon.
  2: Sew around 3 of the sides, leaving the top open. Double or triple stitch for strength.
  3: Flip inside out to hide seams.
  4: Insert insulation, cut to the same size as the "pocket."
  5: Once insulation is appropriately spread through the bag, apply a couple seams to fix the insulation in place. I did one long seam around the perimeter and 3 seams down the length. Leave the top open while you do this so you can re-position insulation if needed.
  6: At the top of the bag, roll the hem inside. Sew to close the bag from the top.

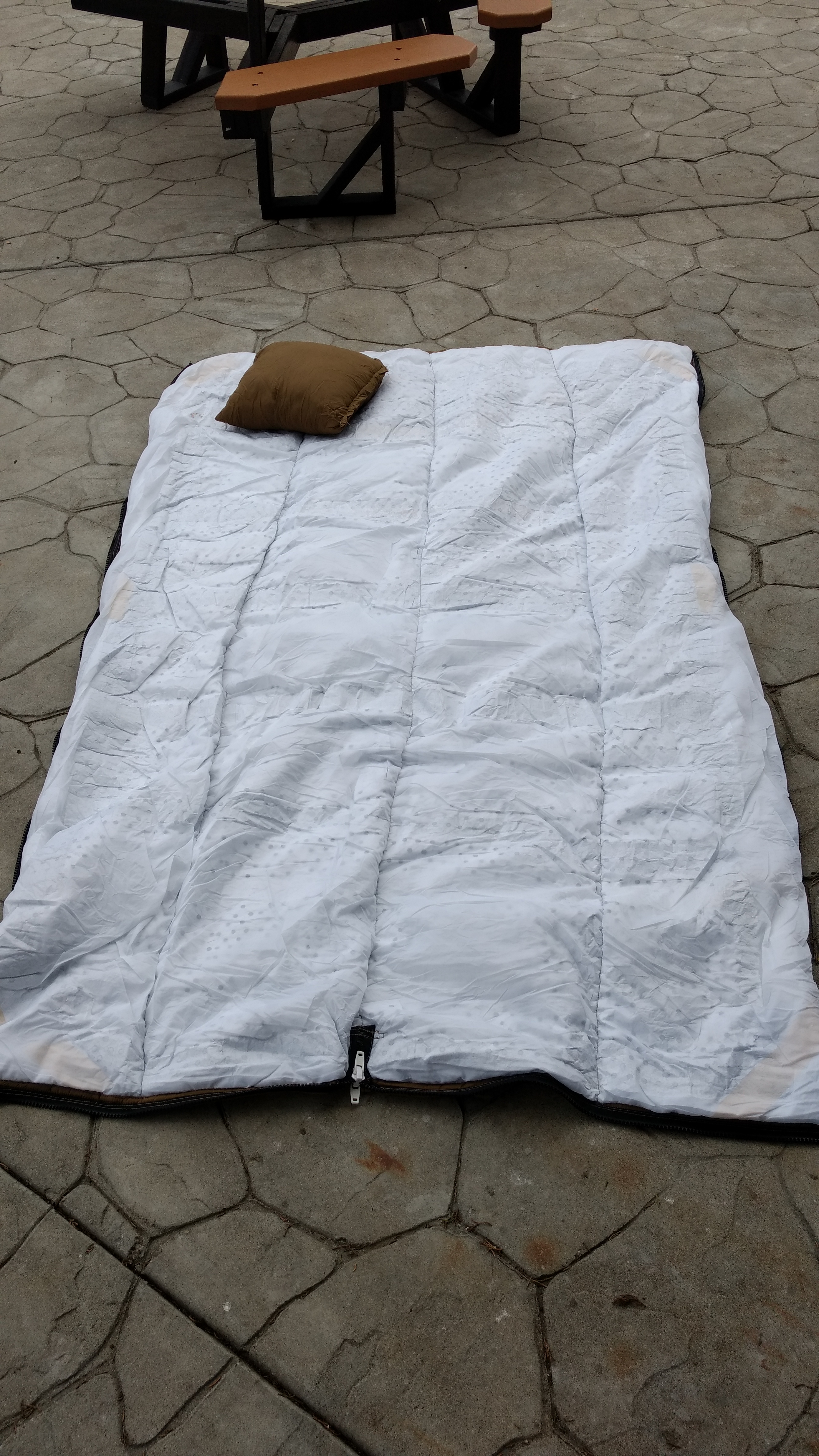

  7: Optional. Sew on zipper. I used a full zipper so the bag can open into a quilt. Half zippers save some weight.

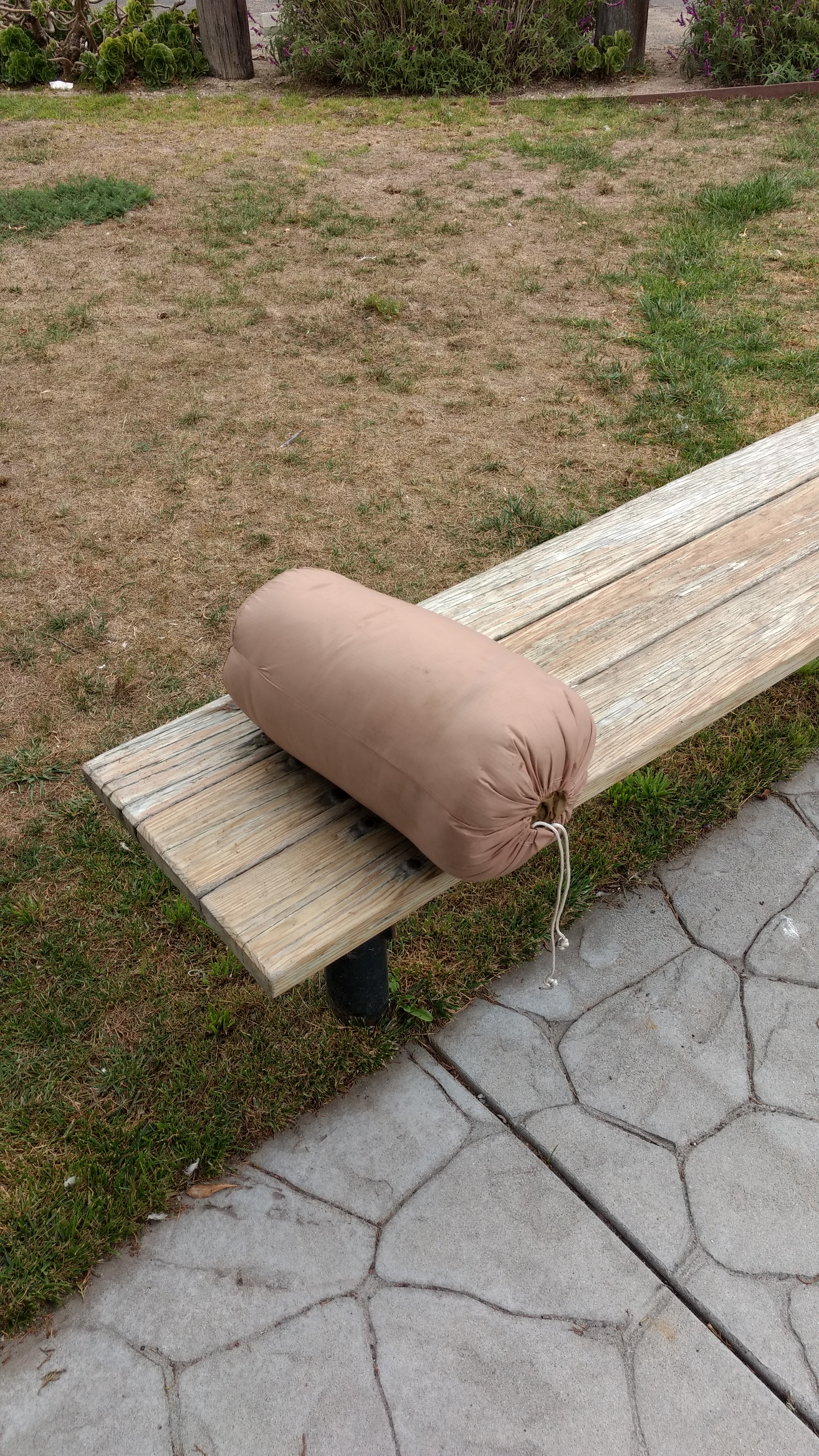

  8: Optional: make a stuff sack.
  9: Optional: use extra insulation and shell materiel to make a lightweight pillow.

• Required Materials:

  2.25 Yd Climashield Apex 5 oz/sq yd
  About 5 yd of shell materiel
  About 9 ft zipper if using zipper
