Customer Project: Gridstop Waterproof Rolltop Handlebar Bag

I needed a handlebar bag that was in between the Revelate Pronghorn's medium and large bags. It needed to be large enough to fit my sleep system and spare layers for a bikepacking trip in the Ozarks. The outer needed to be durable enough for rocks and abrasion, and waterproofness was ideal for the rain. I made it semi-rectangular and ovalized to keep it closer to the handlebars, with the weight moreso over the wheel.

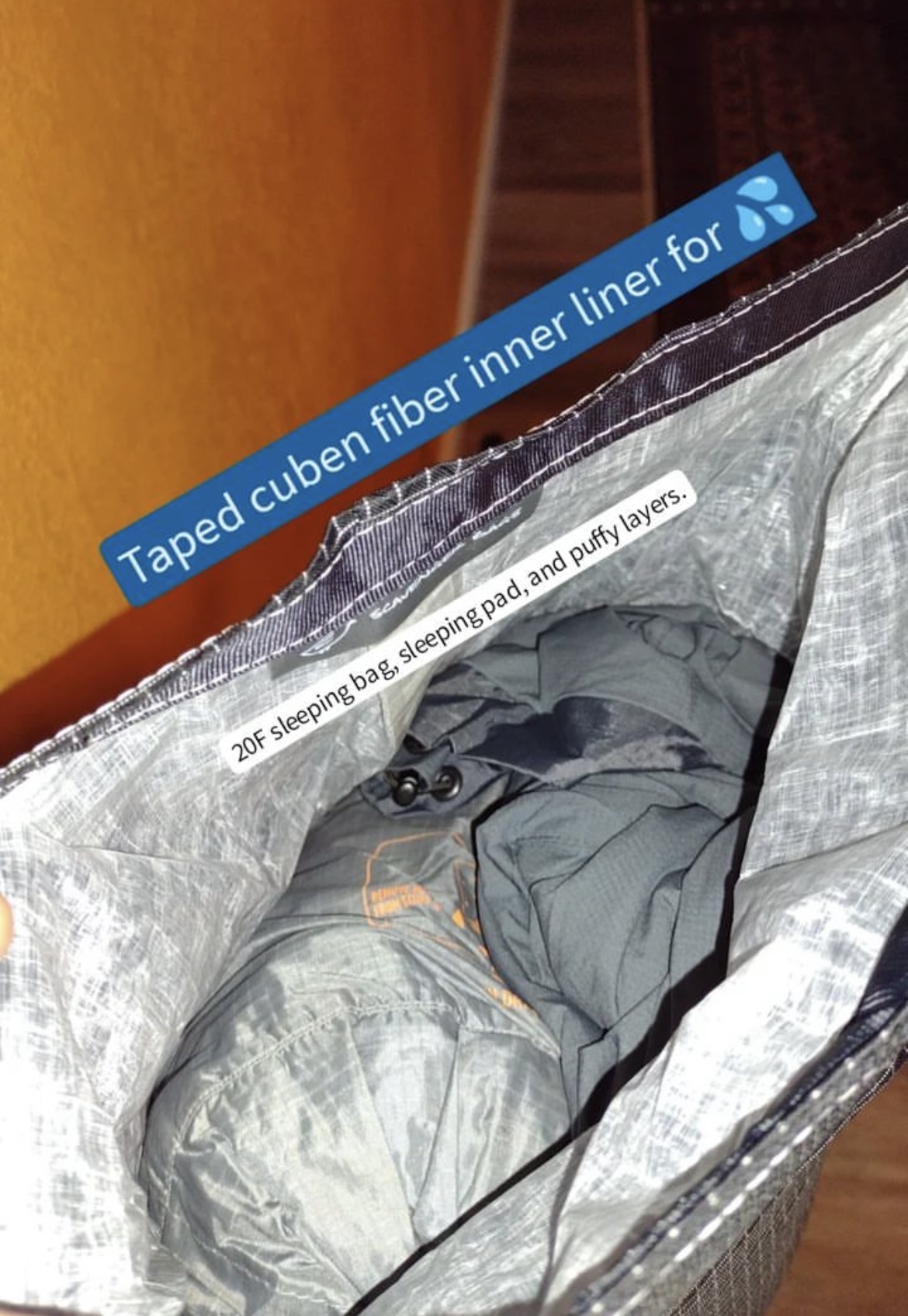

- Sewed the inner liner out of 1.0oz clear Dyneema and seam taped
- Sewed the outer portion out of Gridstop
- Attached two bags at the bottom, and then flipped wrong side to wrong side
- Sewed together at the opening
- Added a layers of 3/4" thin grosgrain around perimeter to hide joinery
- Sewed 3/4" poly webbing with buckles to outer
- Slid layer of thin 3/4" cut HDPE sheet behind webbing before sewing closed for rigidity
Required Materials:
- 1yd 210D Gridstop w/ Dyneema
- 1yd 1.0oz Dyneema Composite
- 1-2yd Dyneema Tape
- 1/2yd of 3/4" grosgrain
- 1/2yd of 3/4" poly webbing
- Buckle
