Customer Project: Green Dragon Bug Bivy

by Dudeman_atl

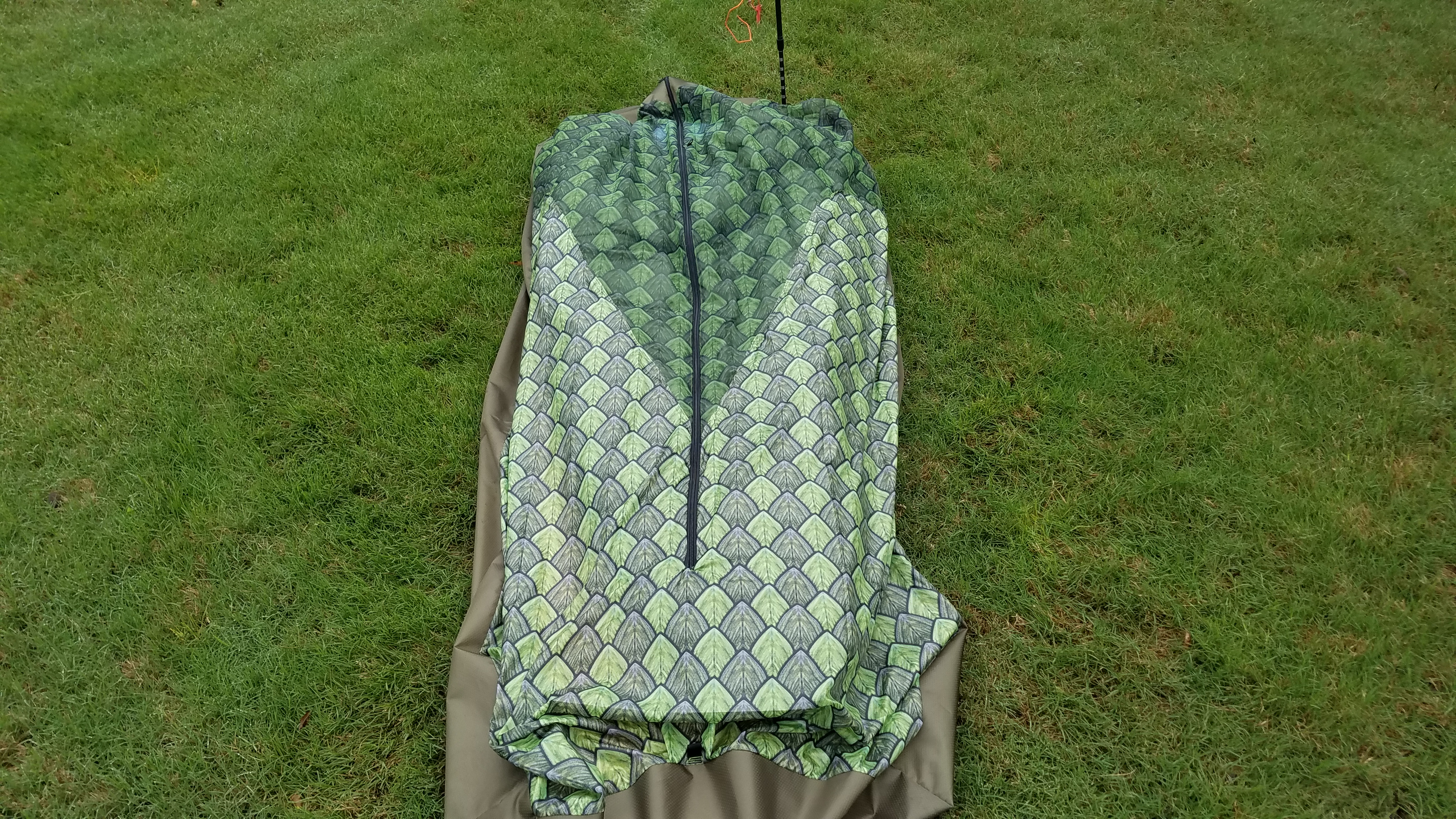

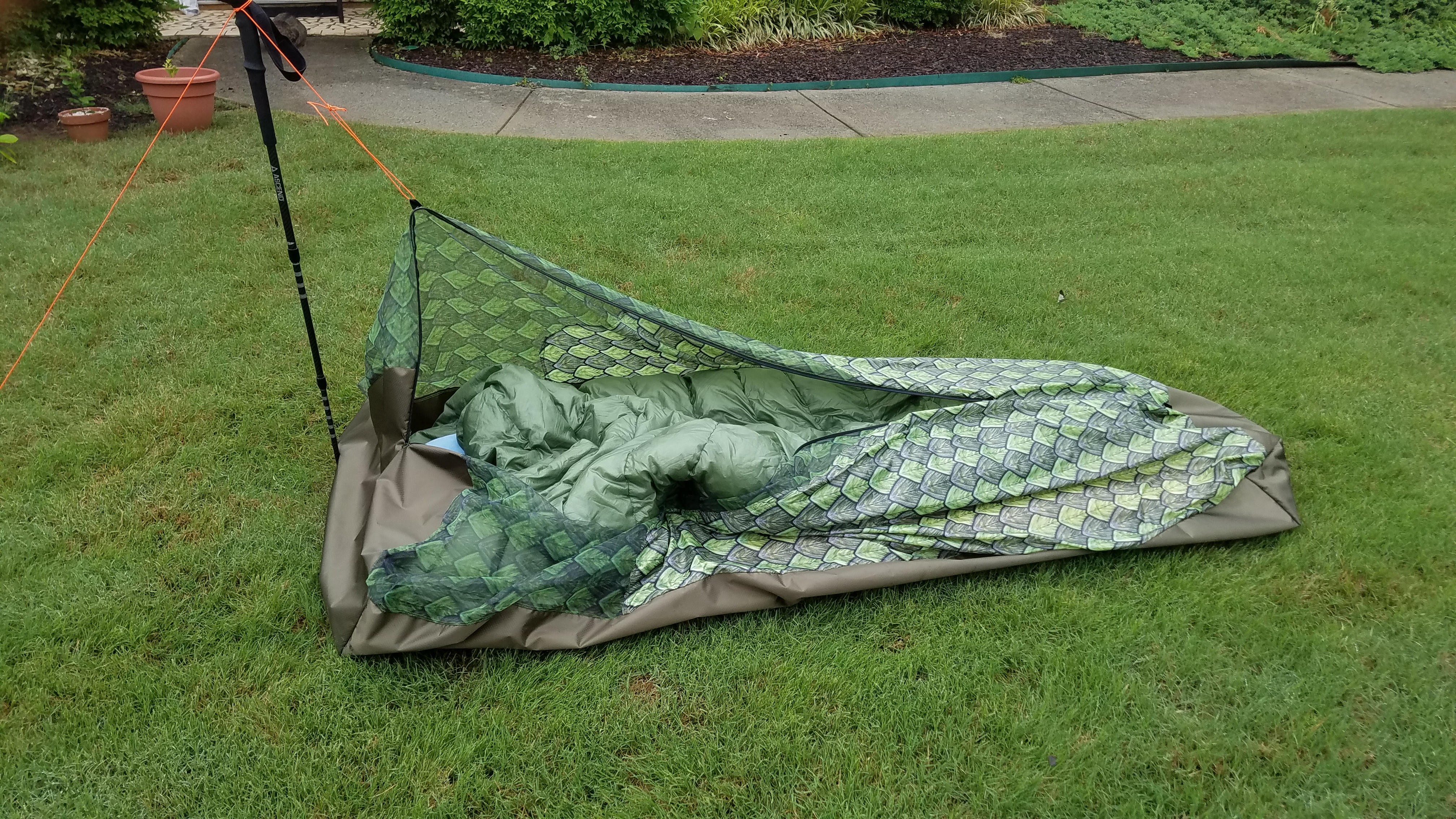

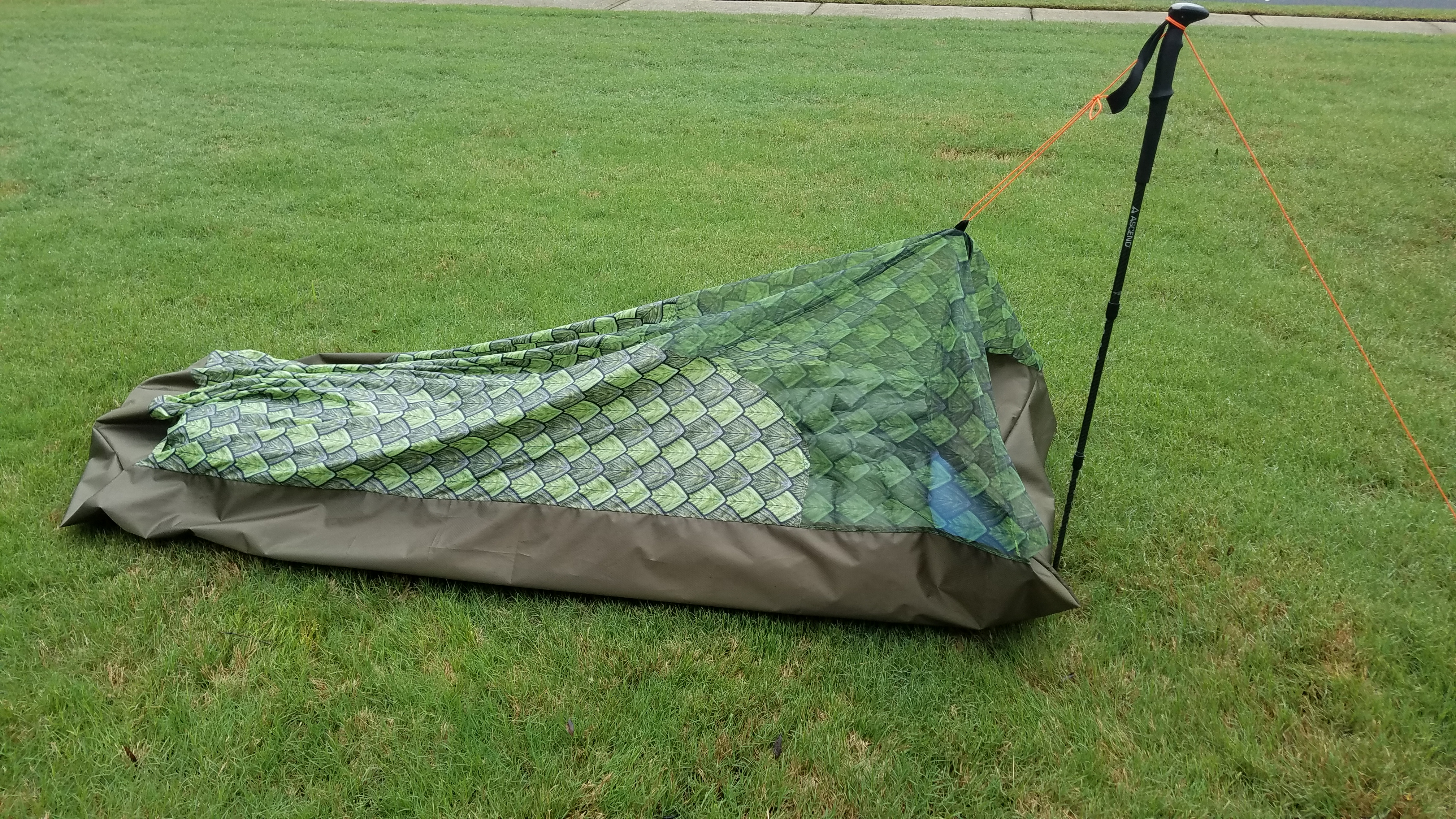

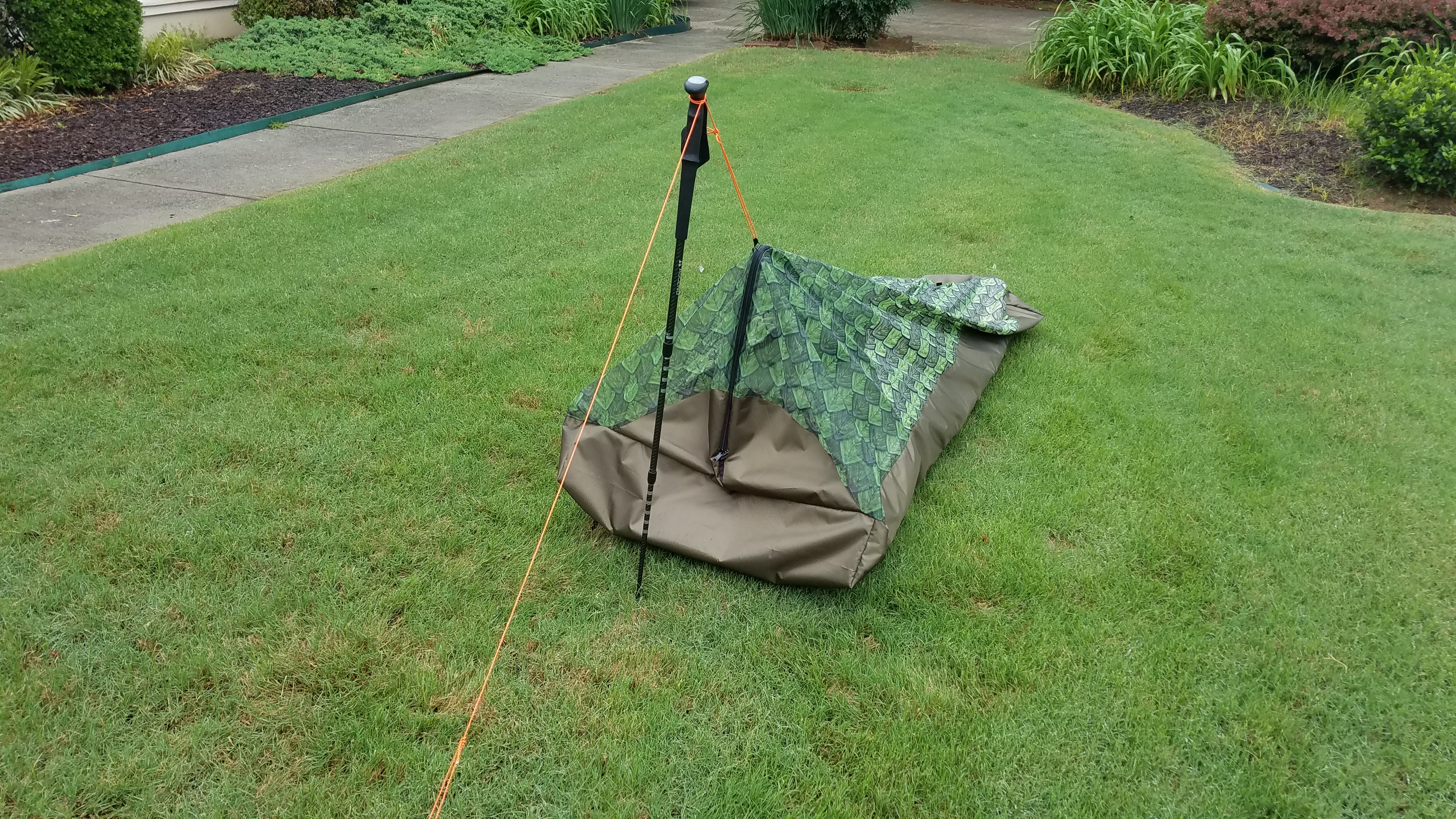

This is a light splash bivy with a bathtub floor and a suspended bug net.  It combines durable HyperD 300 on the floor for rugged waterproofness and a two fabric upper layer for breathability.

Customer Project: Green Dragon Bug Bivy
Customer Project: Green Dragon Bug Bivy
Customer Project: Green Dragon Bug Bivy
Customer Project: Green Dragon Bug Bivy

Materials

Dark olive HyperD 300 for the bottom.
Membrane 15 in green dragon scale for the top/foot end.
Nanoseeum in green Dragon scale for the top/head end.
6 foot
Related Products:

How do I make it?

  1. Cut the upper layer materials to match up along the printed pattern.  Make sure to leave 1/2 inch overlap to sew multiple lines to join the fabric pieces.   Cut the top layer about 10 inches wider than the bottom so the bugnet can be suspended.
  2. Cut semi-circular pieces to adapt the top layer to the bottom width & sew the rounded side to the top layer at the head and foot.
  3. Sew in a zipper to the upper layer.
  4. Cut the bottom fabric to desired dimensions plus 6 in. on each side for a wall.  Sew box corners in the bottom layer.
  5. Join the top & bottom.
  6. Add suspension loops of ribbon as desired.
